| 1040-1 |
Brewster |
N-7 |
|
CAPABLE OF DRILLING TO 12,300'
MAST/SUBSTRUCTURE:
128'H x 301,000SHL on 8 lines x 15'9"W mast--11'H x 18'W x 44'L Box
substructure.
DRAWWORKS:
N-7 Brewster SD grooved for 1 1/8" line p/b (2) D-343 Cat diesels--341 Parmac
brake.
MUD PUMPS:
#1 National K-500 duplex p/b 353 Cat
#2 Emsco DA-500 duplex p/b 353 Cat diesel
MUD SYSTEM:750 bbl. (2) tanks w/6 compartments--80 bbl. Premix--Shale
shaker--Mud house
BOP EQUIPMENT:
Shaffer type A-11" BOP-- 3000 psi choke manifold--Payne 3 station accumulator
ROTATING EQUIPMENT:
Ideco 23F 23" x 44" rotary table SL225-250T
TRAVELING EQUIPMENT:
McKissick 250 ton x 5 sheave block/hook combination.
DOGHOUSE:
9'W x 8'H x 30'L w/ lockers knowledge box etc.
GENERATORS:
(1) 265KW p/b 343 Cat
(1) 250KW p/b 353 Cat
TANKS:
(1) 500 bbl water tank
(1) 12,000 gallon fuel tank
TUBULARS:
Approx. 10,000' used 4 1/2" x grade E x 4 1/2 XH tool joint drill pipe
(24) 6" + or - drill collars.
HANDLING TOOLS:
Misc. elevators, slips, pickup subs, (2) breakout/makeup tongs w/various heads. |
|
   |
| 906-17 |
Challenger |
360-SD |
1981 |
MAST: 95' x 200,000 lb. gross capacity hydraulically raised and
scoped telecoping mast w/racking board.
DRAWWORKS: Single Drum w/6 part 1" lines--Parmac Model 122 hyramatic brake--(2)
Kelco Model 12 make up/breakout catheads--12V71N Detroit diesel engine and
Allison CLT 5860 transmission--Sandline drum.
ROTATING EQUIPMENT:
18" Howard-Turner rotary table--4 1/2" x 36' square kelly w/swivel and roller
type bushing--
SUBSTRUCTURE:Back on type ramp and 30" H. sub.
TRAVELING EQUIPMENT:
(1) McKissick model 663 x 100 ton x (3) sheave traveling block--(2) 1 3/4" x 60"
150 ton elevator links--
HANDLING EQUIPMENT:
(1) set 4 1/2" Web Wilson type T-100 center latch drill pipe elevators--(1) set
slips for 6 3/4" to 8 1/4" drill collars--(1) Baash-Ross type "C" safety clamp
with box and handles for up to 10 5/8" drill collars--(1) 3" ID x 12' L high
pressure vibrator hose w/3"x 2000 psi gate valve.
MISC. EQUIPMENT:Doghouse--Mud tank--(1) 5KW Lister generator--Bit subs:(1) 6 5/8
reg box x 6 5/8 reg. box, (1) 6 5/8 box x 7 5/8 box, (1) 4 1/2 box x 6 5/8 reg
pin.
AIR COMPRESSORS: (2) powered 900/350 air compressor units.
MUD PUMP: (1) Gardner-Denver model FO-FXO 7 1/4 x 10 duplex p/b 6V92 Detroit
diesel engine complete with hoses, guage and shear relief valve--Oilfield skid
mounted. |
Tri-axle
trailer. |
Call for details and pictures 307-587-5192 |
| 1018-3 |
Combo-House |
|
|
Combination Unit
doghouse/generator/accumulator/tool house--275KW generator p/b 60 Series
Detroit--Accumulator--5 stage--change lockers--Oil room--Tool racks--Electric
panel and outlets--Flat top model. |
Oilfield Skid |
         |
| 1065-1 |

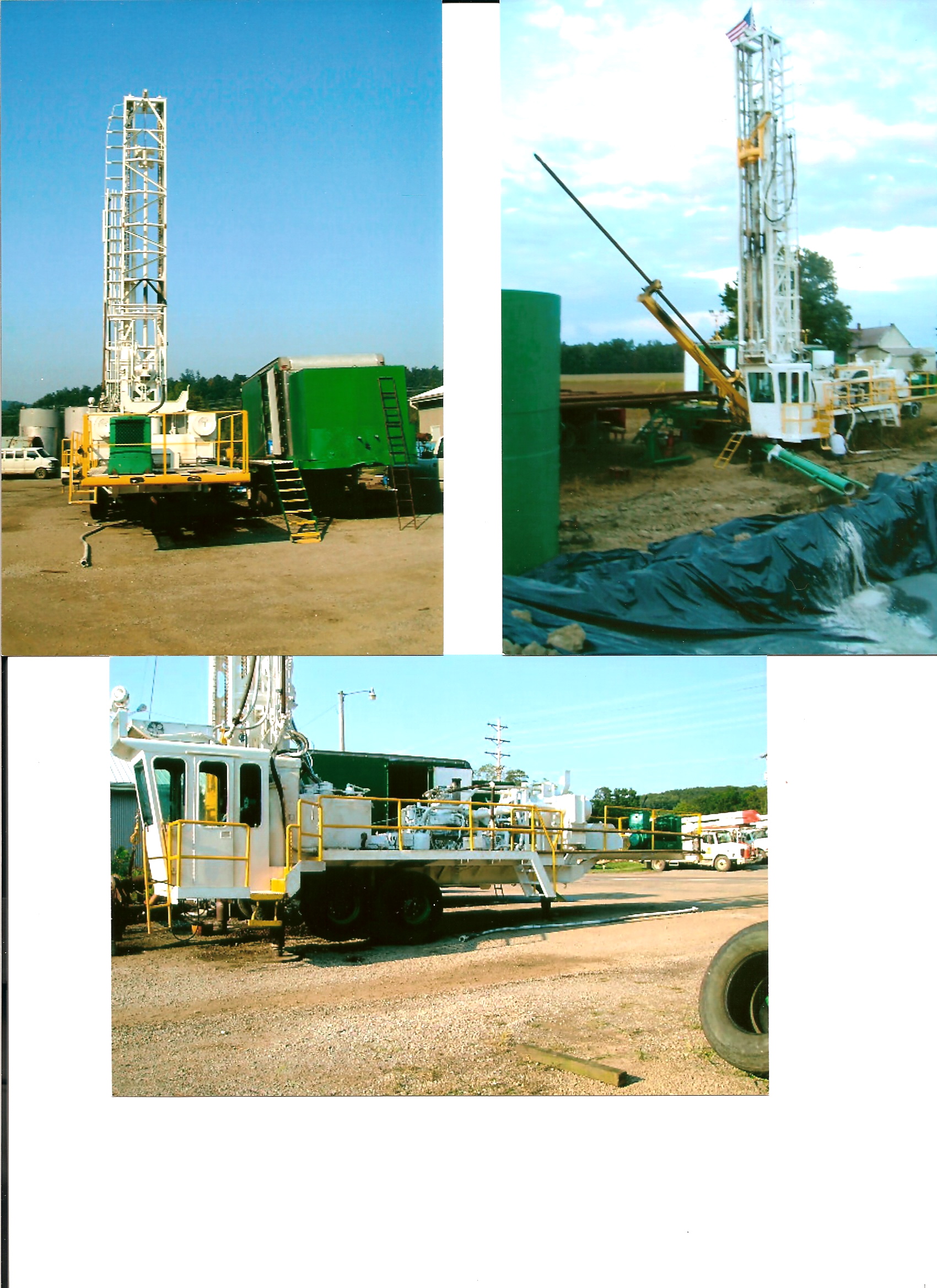

Driltech |
D-60KII |
1985 |
1250/150 air--68,000 pullback--Hydraulic
pipe handling arm and automatic pipe racks (like Walker-Neer)--3408 Cat
diesel--Doghouse/1250 gal fuel trailer combo--Operators cab--Hobart welder and
15 KW generator mounted on deck--150 gal fuel tank--Included with rig package:
Approx. 3000' 4 1/2 x 30' IR drill pipe--5 x 10 Oilwell duplex mud pump p/b 105
hp Perkins diesel engine on master skid--Diverter head and 8" x 60' blooey
line--1979 Mack tandem axle winch truck w/rolling tailboard--Tandem axle pipe
trailer-- |
Tandem axle trailer mounted |
 |
| 1053-3 |
Dresser |
T-70W |
1983 |
TOP DRIVE RANGE III
CASING CAPABILITIES! EXTENSIVE REBUILD. Tophead
drive with drawworks for handling pipe and casing--900/350 Air--70,000
pullback--Drawworks w/4 part lines for tripping hole and running
casing--Extended mast which can run up to 44' casing--Tophead retracts in back
of mast to allow hoist blocks to align with hole for handling casing and drill
pipe--Retractable table plate--Hydraulic spinning chain--Breakout and makeup
tongs--New Bean water injection pump--Hydraulic leveling jacks--Water injection
system--
This rig has had major repairs and updates to include the
following: New 900/350 air compressor--New tophead motor (upgraded to
Kawasaki)--New King swivel--New tophead guide bearings--New working floor--New
hydraulic cooling fan motor--Control valves rebuilt or replaced--New and added
hydraulic filtration (for extra hyd. flow from upgraded hydraulic pump
volume)--New main hydraulic pump (upgraded to Kawasaki)--New bigger certified
pump--New power divider--Rebuilt PTO--Rebuilt heads, blower and turbo on 8V92TT
deck engine--New Bean injection pump and plumbing--New exhaust and
mufflers--Many new hydraulic hoses--New seals in pulldown cylinder--New seals in
steering cylinder--Plus other misc. repairs.
This is an ideal rig for shallow oil and gas well drilling
as well as ideally set up for drilling surface holes and setting up to Range III
caings. A very hard to find top drive unit in rebuilt condition. |
1983 (4) axle crane carrier
chassis w/300 hp 671 Detroit diesel engine. |
        |
| 1137-1 |
Failing |
2000-CF |
1979 |
58' x 75,000 lb. mast--(1)
471 Detroit diesel deck engine (engine # 2 has been removed)--(6) part lines
both drums--Double drum drawworks with (2) brake bands on each drum--Sandline
drum--All air clutches--18" Failing flip up rotary table--(1) spinning cathead-
(2) hanging make-up/breakout-out tongs w/breakout cylinder--Large diameter
swivel and kelly--Hyd. leveling jacks--Mud boat(sub base) |
Trailer Mounted |
         |
| 1064-1 |

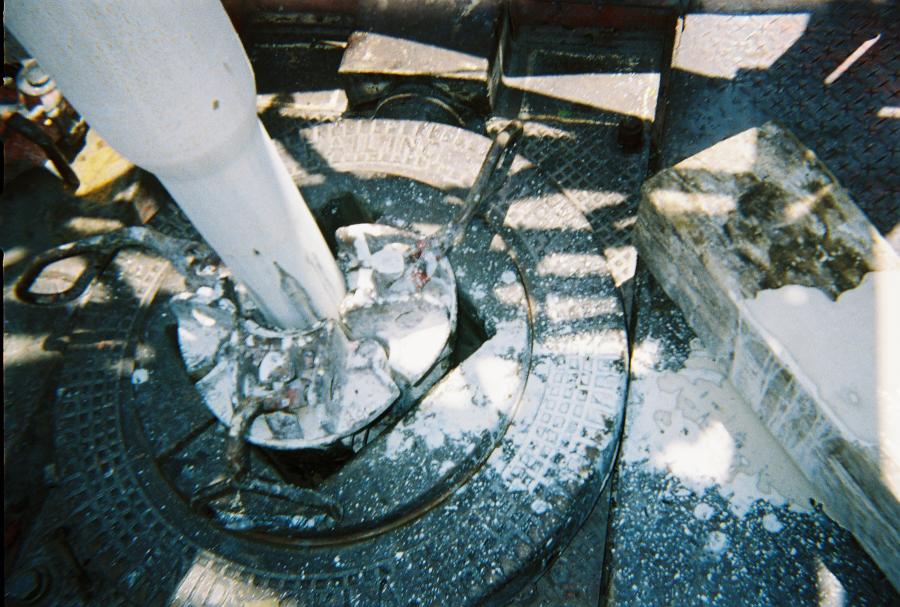

Failing |
2500-A |
|
NICE CLEAN
2500! 58' mast w/stabbing board--Single drum
drawworks with sandline drum--air clutches--Cathead--Hydraulic and manual
leveling jacks--(2) 471 Detroit diesel engines--GD FY-FXX 7 1/2 x 8 mud
pump--(4) part 7/8" drill line--Failing 3" swivel--4 1/4 x 38' square kelly
w/roller type bushing--18" Failing rotary table--(2) makeup/breakout
tongs--Hydraulic breakout cylinder--(1) set 3 1/2" center latch elevators--(1)
set drill pipe slips. |
Trailer Mounted |
           |
| 906-15 |
Failing |
2500-A |
1977 |
58' one piece mast w/stabbing
board--Single Drum Drawworks--Sandline drum--GD 7 1/2 x 10 model FXD mud
pump--(6) part line both drums--4 1/2" x 36' square kelly w/Baash-Ross roller
busing--3" opening swivel--3" plumbing--18" rotary table--(4) hyd leveling jacks
and (2) mechanical screw jacks--(2) 471 Detriot diesel engines and Allison
transmission w/compound box--Rig is operating like a double drum by using the
sandline drum as the kelly line. |
Tandem axle Trailer |
     |
| 1033-2 |
Failing |
2500-A |
|
REDUCED FOR QUICK
SALE!! CALL NOW! FAILING 2500-A complete
with the following attached equipment:
65' x 133,000 gross capacity one piece mast--stabbing board--Single drum
drawworks w/Aeroflex 16" air clutch on main drum p/b (2) 471 Detroit diesel deck
engines w/manual transmission--Sandline
drum--18" Failing rotary table-swivel--Cat head--4" x 34' square kelly w/solid
kelly bushing--(1 )front hydraulic leveling jack--(6) screw type leveling
jacks--(2) makeup/brakeout tongs-- 5 x 10” duplex mud pump |
Trailer Mounted |
     |
| 1018-2 |
Franks |
44 |
|
50' one piece mast
w/tubing board, hydraulically raised--Double drum drawworks--(2) sheave
traveling block--(4) hyd. Leveling jacks |
Franks 3 axle carrier w/
very good tires |
       |
| 906-14 |
GD |
2000 |
1978 |
Double drum drawworks w/air
clutches, (6) part 5/8" lines both drums, Hydraulic pulldown (chains need to be
reinstalled), 58' mast w/stabbing board, 18” GD RT-18 rotary table , 3" opening
GD SW-75 ton Swivel , 4" x 38' sq. kelly, 7 ½” X 10” FXD GD mud pump , No
catheads, (4) hyd. leveling jacks , hydromatic brake (needs to be reinstalled, 2
breakout/makeup tongs , hydraulic brake out cylinder, |
1978 (4) axle Crane Carrier
w/350 Big Cam Cummins diesel engine. |
        |
| 1120-1 |
GD |
3000 |
|
ABSOLUTELY GORGEOUS
GD-3000' MAST: 95' x 200,000 lb. hook load capacity
Lee Engineering vertical freestandiing hydraulically raised and scoped
w/stabbing board.
DRAWWORKS: Gardner-Denver 3000 single drum with sandline drum--121 Hydramatic
brake--1" drill line--p/b (2) 671 Detroit diesel engines (175 hp each) thru
compound case.
SUBSTRUCTURE: Low back model--Gardner-Denver 8'x8'x4' clearance under table work
platform--Mud boat.
ROTATING EQUIPMENT: Howard Turner 1825R (18") rotary table--King 75WP swivel--4
1/2" x 40' square kelly w/roller type bushing.
TRAVELING EQUIPMENT: (1) Mud King 110 ton/(4) sheave traveling block--Elevator
links--
TONGS: BJ Type LF--BJ Model CTS power casing tongs w/2 3/8", 2 7/8" & 4 1/2"
jaws.
MUD PUMP: (1) Gardner-Denver FXN 7" x 14"( fitted w/5 1/2" liners)--Quick change
valve caps p/b 60 Series Detroit 14L (425 hp)--Master skidded in steel house.
MUD SYSTEM: 225 bbl mud tank w/ 5 x 6 x 11 Mission Magnum mix pump, Derrick FLC
503 Flo Line shaker--No cones--p/b John Deere diesel engine--80 bbl Mud system
w/5x6x11 mix pump p/b 471NA Detrot diesel Premix. 8'Wx7'Hx10'L w/12' covered
porch.
GENERATOR:(1) Kohler Model 100REOZLC 88KW capcity p/b John Deere diesel engine.
ADDITIONAL EQUIPMENT: 200 bbl water tank,1300 gal fuel tank, Doghouse & change
house all mounted on 42' tandem axle trailer.
MISC: A-1 7 degree survey tool--Toolpusher trailer--Pason Multi pen electronic
recorder with satellite download.
TUBULARS: None included
BOP EQUIPMENT: None included |
Mast & drawworks mounted on
(3) axle trailer. |
        |
| 1044-1 |
Hopper |
GXXTA |
|
PRICE
REDUCED!! EXCELLENT DOUBLE DRUM
RIG FOR SHALLOW PRODUCTION DRILLING!
MAST: 96’x 212,000 lb. hydraulically raised and
hydraulically folding mast w/racking board set up for range two doubles--Air
cylinders pull on the kelly lines to retract kelly to back of mast out of the
way so hoist line can center with hole for true double drum operation. No
rat hole necessary.
DRAWWORKS: Hopper model GXXTA Double Drum drawworks w/10 x 42 brakes on both
drums p/b 12V71T Detroit (California certified) and TG-607 Allison automatic
transmission w/ TC-855 torque converter--6 part 1" lines both drums--Right angle
drives to drawworks, chain drop box to drive rotary.
TRAVELING EQUIPMENT:
(2) 100-ton 3 sheave blocks
(2) Elevator links
SUBSTRUCTURE: Drive on ramps and base--Hopper sub-base (9' 2" clearance under
rotary table) walk trailer combination with dual rear axles.
ROTATING EQUIPMENT:
17 ½” Ideco rotary table
125 ton Brewster swivel
4 ¼” x 40' square Kelly with Varco roller drive bushing.
DOGHOUSE: combination doghouse/3,000 gallon fuel tank with air compressor and
electrical panels mounted on oil field trailer with dual rear axles.
HANDLING EQUIPMENT:
(2) BJ type B tongs
(1) 4 1/2" drill pipe elevators
(1) 4 1/2" drill pipe slips |
Drawworks and mast are
mounted on tandem axle trailer w/4 hydraulic leveling jacks--Substructure and
rotary table are also trailer mounted and the 2 units back together for fast rig
up. |
           |
| 1135-1 |
Hopper |
GXXTA |
1969 |
WORKOVER RIG!
Drive in rig w/96/260 hydraulically raised and scoped mast w/rod
and tubing boards--Hopper GXXTA double drum drawworks w/hydramatic brake on main
drum--(6) part line--Approx. 15,000' 9/16" sandline--
Rig is being sold as work is getting deeper so company has
gone to larger units. This appears to be a straight, well maintained machine but
as well service rigs go, it needs cleaned and painted. |
(4) axle carrier with 8V71N
Detroit diesel engine and 3 speed Allison transmission. |
        |
| 1089-2 |
Ideco |
H-25 |
|
COMPLETE RIG
86/150 Cardwell mast w/6 sheave crown and hydraulic operated
top section pins--Ideco H-25 drawworks p/b 8V71 Detroit engine--17 1/2" Ideco
rotary table--Hydraulic breakout and makeup cylinders--Plumbed for kelly
spinner--Hydraulic leveling jacks--Hydraulic wire line--Hydraulic pickup
winch--Certified derrick carrier--4" standpipe--200 BBL. Mud tank w/4 cone
desilter and Swaco dual screen shaker--Adjustable mud tank maniforl--(2) 5x 6
Mission Magnum mixing pumps w/40 HP motors--Venturi style mixing hopper--300
bbl. Water tank w/pump--5000 gal. fuel tank w/pump--National K-500 duplex mud
pump p/b D-353 Cat in 10 x 30 steel building w/fluid end consumables--10 x 40
toolpushers house--168KW generator p/b Duetz diesel--
This rig has been totally sandblasted. It has not been pieced
together and is a complete unit that was running with all components. It has
been recently operating. |
Ideco Rambler 16 wheel
trailer |
                    |
| 437-5 |
IR |
T-4W |
1982 |
1050/350
air--70,000 pullback--12V71 Detroit diesel deck engine--Carousel--Water
injection--DTH oiler--Standard mast--(3) hydraulic leveling jacks-- |
1982 Crane
Carrier Corp. tandem axle chassis. |
                 |
| 1092-1 |
IR |
T-4W |
1985 |
COMPLETE
WORKING RIG READY TO GO! 900/300 air--70,000
pullback--12V71 Detroit diesel deck engine--Standard mast--4 1/2" x 25'
carousel--Water injection--DTH oiler--(3) hyd. leveling jacks--Includes approx.
2200' used IR drill pipe as follows: 1600' 4 1/2" x 25' and 600' 4 1/2 x 20' x
IR drill pipe.
(2) used 6" hammers and misc. pipe handling tools.
Air compressor rebuilt 24 hrs. ago--12V71 Detroit rebuilt
approx 2000 hrs ago. Othem misc. repairs including cleaned and painted |
1985 tandem
axle Crane Carrier Corp. chassis. |
(Call 307-587-5192 for additional information) |
| 936-4 |
IR |
T-4W |
1989 |
900/350 HR-2 IR air compressor--Cummins
deck engine--50,000 pullback--Spur gear head--water injection--oiler--Included
with rig:
Approx 2000' 4 1/2" drill pipe--DTH hammer.
Tandem axle pipe truck
Annular BOP |
1989 Pettibone carrier
w/Cummins diesel engine. |
|
| 1037-1 |
Jaswell |
3500 |
1981 |
900/350 Sullair-- KT19A
(600 hp) Cummins deck engine--34' head stroke--Range II casing handling
capability--Hydraulically operated drill pipe and casing handling arm--Water
injection system--rig lights Other
Equipment: Oilwell 214-P (7 1/4" x 14") duplex mud pump p/b twin 671 Detroit
diesel engine--Reagan 7" x 3000# annular BOP--Trailer mounted doghouse/130 bbl
water tank combo w/45KW generator--3060' 4 1/2" x 30' external flush drill
pipe--(4) 4 3/4" x 30' drill collars (1200# each)--40' flat bed pipe/collar
trailer w/hydraulic operated pipe racks-- 1980 IHC tandem axle tractor/crane
truck to handle pipe & collars and pull pipe trailer--29' tongue pull travel
trailer.
Numerous changeover and bit subs--Cement heads
for 4 1/2", 5 1/2", 7", & 8 5/8" casing--6" IR DTH hammer drill--Conductor pipe
drive plates--Misc. casing centralizers, Misc. asst of bits (new & retips) plus
other misc. items. Also avail at extra cost (call for pricing) is a wireline
machine and 8" Dorland style BOP.Accessories: |
1981 IHC Paystar 5000 4
axle chassis. |
     |
| 1060-8 |
MIdway |
3500DD |
1982 |
60/150,000 one
piece vertical freestanding mast--Double Drum drawworks with Sandline drum all
air clutches--18" rotary table--(5) hydraulic leveling jacks--Pulldowns are
available but not installed--Fold down walk ways--Explosion proof mast lighting |
(4) axle Crane
Carrier p/b350 Cummins. |
               |
| 736-11 |
Mud pump |
PY-7 Triplex |
|
EXCELLENT
BUY ON A GOOD TRIPLEX! GD PY-7 triplex mud pump w/6"
liners--No power--Pump is stated to have been inspected, repaired as needed and
has been recently working. He further states it is in good condition and ready
for service. |
Skid mounted |
Call 307-587-5192 for more information. |
| 1117-2 |
Mud Pumps |
PZ-7 |
|
(2)
EXCEPTIONALLY NICE POWERED TRIPLEXES. READY TO GO.
(2) Gardner-Denver PZ-7 TRIPLEX (7" x 7"). Each powered by 60 series Detroit
diesels and Allison 5860 transmissions--(2) 5 x 6 Mission Magnum centrifugal
charge pumps-- |
Skid Mounted |
%20GD%20PZ-7%20Triplex%20Unit%201117-2%20Pic%2010_small.jpg) %20GD%20PZ-7%20Triplex%20Unit%201117-2%20Pic%209_small.jpg) %20GD%20PZ-7%20Triplex%20Unit%201117-2%20Pic%208_small.jpg) %20GD%20PZ-7%20Triplex%20Unit%201117-2%20Pic%207_small.jpg) %20GD%20PZ-7%20Triplex%20Unit%201117-2%20Pic%206_small.jpg) %20GD%20PZ-7%20Triplex%20Unit%201117-2%20Pic%205_small.jpg) %20GD%20PZ-7%20Triplex%20Unit%201117-2%20Pic%204_small.jpg) %20GD%20PZ-7%20Triplex%20Unit%201117-2%20Pic%203_small.jpg) %20GD%20PZ-7%20Triplex%20Unit%201117-2%20Pic%202_small.jpg) %20GD%20PZ-7%20Triplex%20Unit%201117-2%20Pic%201_small.jpg) %20GD%20PZ-7%20Triplex%20Unit%201117-2%20Pic%2011_small.jpg) |
| 1018-7 |
Mud Tank |
150 bbl |
|
150 bbl. Tank w/mixer pump and degasser--Engine bad--skid mounted |
Skid Mounted |
   |
| 1009-10 |
Oilwell |
660 |
|
Derrick – Pyramid
Cantilever Mast & Block Assembly 131’ x 18’ Hook Load 453,000#
Substructure – Pyramid 22’w x 45’l x 18’h Box on Box w/10’h Massarenti built
Pony Sub
Oilwell 660 Drawworks grooved 1-1/8” w/Sandline
(2) 12V71 0 Hour Rebuild w/Twin Disc Torque Converters – Compound Drive
Parmac Auxillary Brake Type 40SR
Rotary Table – Oilwell B27-1/2
2-3/4" x 108" Elevator Links
Block/Hook – Baash Ross Type DBM 548-300 Shorty – 0 Hour Rebuild
Gray Type ‘F’ Swivel - 0 Hour Rebuild
5 Station Accumulator
Baash Ross TP6 Drive Bushing & 40' Kelly
BJ 250 ton 5" Drill Pipe Elevators
BJ 250 ton 3-1/2" Drill Pipe Elevators
Torque Sensors
Type E Deadline Anchor
Derrick Stand
(2) Catwalks
(2) Quincy air compressors
Satellite Automatic Driller |
|
                        |
| 1115-1 |
Schramm |
T-685WS |
1999 |
1360/350
air--75,000 pullback--Detroit MTU 12V (760 hp) deck engine--(8) piece x 25'
outside carousel--(5) piecex 25' inside carousel--Side pipe rack holds 25 joints
of 25' drill pipe--7600 lb. auxillary winch--Auxillary winch controls on helpers
side--18 gpm DTH oiler--25 gpm water injection system--Engine heater--Side walk
way on pipe rack side--Variable capacity compressor inlet valve--Rotation torque
limiter--Approx. 6000 hrs. Available at extra cost:
Water Truck--1999 Sterling 9513 tandem axle chassis p/b C-12 Cat (410
hp)--16,000 lb. front and 44,000 lb. rear axles--Rosewall 2000 gal. flat top
water bed--6000 lb Liftmore crane w/remote control--140 gpm hydraulic water
transfer pump--Tool cabinets with torch hose reel--220 gal. fuel tank divided
into 2 110 gal. so no placards are needed--hose reel and transfer
pump--Hydraulic is in cabinet for hydraulic powered welder (no welder included)
Approx. 1450' used 4' x 25' x 2 3/8IF tool joint drill pipe--(1) 6" x 25' drill
collar--7" casing advancement system--Holte 6 5/8" to 7" casing perforator
|
1999 IHC
Navistar 2674 triple rear axle chassis with M-11 (400 hp) Cummins--Jake
brake--12,000 miles--Tires 60% rear--90% fronts |
       |
| 1035-1 |
Schramm |
T-985 |
1977 |
PRICED RIGHT FOR DEEP HOLE AIR RIG.
1977 Schramm T 985 top head drive, Two
425/300 air compressors with 8V71 Detroit engines = 850 CFM at 300 PSI 70,000
lbs pull back
Hydraulic lines are in very good shape many of them being recently replaced
1977 Schramman Top Head Drive 33,000 miles
Two front and two rear axles
40' mast 28' stroke
Two 8V71 deisel engines to drive air compressors and hydraulic pumps
New tires
New driver rear end
Hydraulic pumps just rebuilt
Right 8V71 diesel engine just rebuilt
Bean injector pump just rebuilt
One 3/8" cable sand line
One 5/8" cable sand line
One Gardner Denver mud pump on trailer
Mud Pump
5X8 Gardner Denver with 6V71 Detroit Engine
Comes with suction hose and pressure line (hose)
Mounted on a two axle trailer with pinto hitch and air breaks
Liners and pistons are new, Water Truck
1979 Peterbuilt model 359 L-10 400 hp big cam 3 13 sd trans
Tank 2800 gal flat top (to carry drill collars and pipe)
Tires 65%
New brakes
New rear ends
New drive lines
New power steering
New exhaust system, Rig will come with one new bit and a bunch of used ones
400' of drill pipe
60' of drill collars
Change over subs from bit to collars to pipe |
Mounted on a Hendrickson Truck with a
671 Detroit Engine |
          |
| 1125-1 |
Semco |
S15000 |
1996 |
COALBED METHANE WORKOVER
RIG. 48' x 40,000 lb. capacity hydraulically raised
and telescoped mast--250' 5/8"main line--1000' 1/2" sand line--6000 lb tail out
winch--Hydraulic breakout cylinder--Auxillary hydraulic valves--(3) hydraulic
leveling jacks--Remote control--Oil cooler.
Included with unit:
(1) BJ type C hydraulic power tubing tongs w/2 3/8" & 2 7/8" dies--(1) BJ 2 7/8"
elevators w/2 3/8", 1.9" & 1.5" dies--(1) set elevator bails--(1) BJ 20 ton rod
hook--(1) fish tape--(2) 3/4"-7/8" rod elevators--(2) 1" elevators--(2)
3/4"-7/8" rod wrenches--(2) 1" rod wrenches--1.9", 2 3/8" & 2 7/8" water well
elevators--(1) Guiberson air slips w/2 3/8", 2 7/8" dies & (1) 1.9" wellhead
plate--(1) lift clamp for oilfield pumps--(1) set pipe racks--(2) set spooling
racks--(1) set pump racks--(1) Megger--(1) 30/ Venture line--(1) splice
table--(1) snatch block for double line--(1) set tire chains |
1977 Ford
F-8000 tandem axle chassis with 3208 Cat diesel engine & 5 speed
transmission--Toolboxes. |
          |
| 1137-2 |
Speedstar |
SS-35 |
1979 |
NICE FAST SET UP DOUBLE
DRUM RIG!
RATED CAPACITIES:
4 1/2" drill pipe = 3477'
3 1/2" drill pipe = 4920'
2 7/8" drill pipe = 5970'
(these rated capacites based on favorable drilling conditions)
MAST: One piece 60' working height above rotary table--100,000
lb rated working load with reasonable safety factor w/ swivel guide rails--18"
Speedstar rotary table powered through heavy-duty torque converter with 5-speed
power shift transmission (34 to 215 rpm)--Stacked Double drum drawworks w/9" x
34" double brake bands and 18" two plate air clutches on each drum--18,000 lb.
single line pull on bare drum--(6) part 7/8" lines both drums--Hydramatic brake
(needs to be hooked up)--Sand line drum w/double 6" x 25" brake bands and 18"
single plate air clutch--8V71 Detroit diesel power--Kelly--Swivel--(2)
tongs--Sub base--(1) spinning cathead--No mud pump on board. |
Tri-axle
Trailer |
          |
| 819-4 |
Spencer-Harris |
7000 |
|
Telescoping mast--Brewster
N-4 modified drawworks p/b (2) 8V71 Detrot diesel engines--15" Hydramatic
brake--Substructure 19' x 12' x 9' H from kelly bushing to ground--44" H x 40'
ramp--Skytop-Brewster (4) sheave, 150 ton block/hook--Brewster 18 x 44 rotary
table w/split master bushing
4' 10" W x 42" H x 60' L (2) section catwalk w/built in steps--"V" door--(1)
Emsco D-375 duplex mud pump p/b 12V71T Detroit diesel--Generator 225KW p/b3406
Cat--Doghouse and generator mounted on 40' tandem axle float--2500 gal. fuel
tank/lube unit w/junk basket mounted on 40' float--Halliburton electric wire
line unit--Varco kelly spinner--(2) BJ tongs w/jaws--BOP: Regan 10" annular
w/flanged bottom 2 Cameron QRC 11" bolted together/pipe and blind rams--10" 3000
psi drilling spool--Tubulars: Approx. 7500' used 4" drill pipe--(13) 6" drill
collars--Drill pipe slips and elevators--Drill collar slips & elevators--Rig is
a complete working rig and presently drilling. |
Mast and
drawworks are trailer mounted--Most other equipment is trailer mounted. |
      |
| 706-3 |
Walker-Neer |
150-25 |
1980 |
COMPLETE WORKING
UNIT. DRILLING RIG: Walker-Neer
Apache 150-25--50/150 mast-- King model 10PS tophead drive--Hydraulic arm drill
pipe/drill collar/casing handling arm and pipe rack system--Single drum
drawworks w/6 part lines p/v671 Detroit diesel engine through Allison torque
converter and 5 speed transmission--Rig is mounted on (4) axle crane carrier.
SUBSTRUCTURE: 14" H x 8' W x 36' L back on sub base.
MUD PUMP: Gardner-Denver FXN 7 1/4 x 14" duplex w/Matco quick change fluid end
p/b twin 671 Detroit diesel engines.
AIR COMPRESSORS: (2) 1050 cfm @ 150 psi Gardner-Denver screw type air
compressors each p/b 3406 Cat diesels.
AIR BOOSTER: (1) Joy model WB-12X 7-5 p/b3406 Cat.
DOGHOUSE: 8' W x 40' L trailer mounted w/automatic driller, work bench, lockers,
storage cabinets.
GENERATOR: 36KW John Deere diesel-Rig lighting.
TANKS: 300 bbl water tank, Diesel fuel tank.
WATER/SOAP INJECTION SYSTEM:
Myers triplex pump w/soap tank (skid mounted)
DRILL PIPE & COLLARS:
Approx. 4700' used 3 1/2" w/3 1/2IF tool joints.
(14) 6" drill collars.
(3) 8' x 40' pipe tubs.
Hydraulic pipe racks w/ tool tub.
BOP EQUIPMENT:
(1) 3000# annular.
(1) Washington rotating head.
HANDLING EQUIPMENT:
(2) Web Wilson Type "C" tongs.
Misc. subs and tools |
Rig is mounted on (4)
axle Crane Carrier chassis. |
      |
| 706-4 |
Walker-Neer |
150-25 |
1983 |
ELIMINATE A FLOOR HAND!
MAST:58' x 150,000SHL, 5
sheave crown for 7/8" line, Lighting, stand pipe, rotary hose, hydraulically
raised.
DRAWWORKS:12 3/4" x 18" drum, double 8" x 30" brake bands p/b Detroit 50 Series
diesel engine, Allison 750 transmission, with torque converter. Funk drive box.
TOPHEAD DRIVE: King model 15PS
PIPE HANDLING EQUIPMENT: Hydraulic pipe handling arm and hydraulic pipe racks,
Pipe tub(s)
DOGHOUSE: Doghouse/fuel tank combination w/lights, electric heater, benches,
lockers & knowledge box, Junk box in front, 3000 gal. fuel tank, folding
walkways, stairs, and safety railing--All mounted on Fruehauf 40' tandem axle
trailer.
GENERATOR:60KW Cat
BOP EQUIPMENT: Hunter 3000# Annular.
WELDER: Miller Bobcat 250 p/b Kohler gas engine.
AIR COMPRESSORS: (1) IR 900/350 p/b Cat diesel w/block heater
(1) 2007 IR 1170/350 p/b Cat diesel, skid mounted w/soap tank.
MUD PUMP:Oilwell 212P (7 x 12) p/b rebuilt 3306 Cat.
TUBULARS: Approx. 3000' 3 1/2" S-135 drill pipe.
(16) 4" drill collars
ROLLING STOCK:1978 Fruehauf tandem axle pipe trailer.
1979 tandem axle drill pipe/drill collar trailer.
1990 John Deere 655B crawler loader w/Cargo 60 winch.
Rig has had the following updates:Funk drive box 2008--King 15PS topdrive swivel
rebulit 2006--Generator new 2003--Welder new 2004--IR 1170 air compressor unit
new 2007--Plus other misc. repairs. |
Trailer
mounted. |
           |
| 979-1 |
Walker-Neer |
CC- 2000 |
|
Con-Cor Drill w/Hydraulic pipe handling system w/loader arm--40' mast--6V71 Detroit deck engine--Air clutch on drawworks--GD WEJ air compressor 450/250 capacity--(4) hyd. Leveling jacks--King 3T top drive-- |
(3) axle Crane Carrier w/250 Cummins. |
   |
| 979-2 |
Wilson Super 38 |
|
|
Single Drum--74/140 mast
hyd. Raised and scoped w/tubing board--Split traveling block--8V71 Detroit
diesel engine--Air operated tubing slips |
(4) axle Crane Carrier
chassis. |
        |
